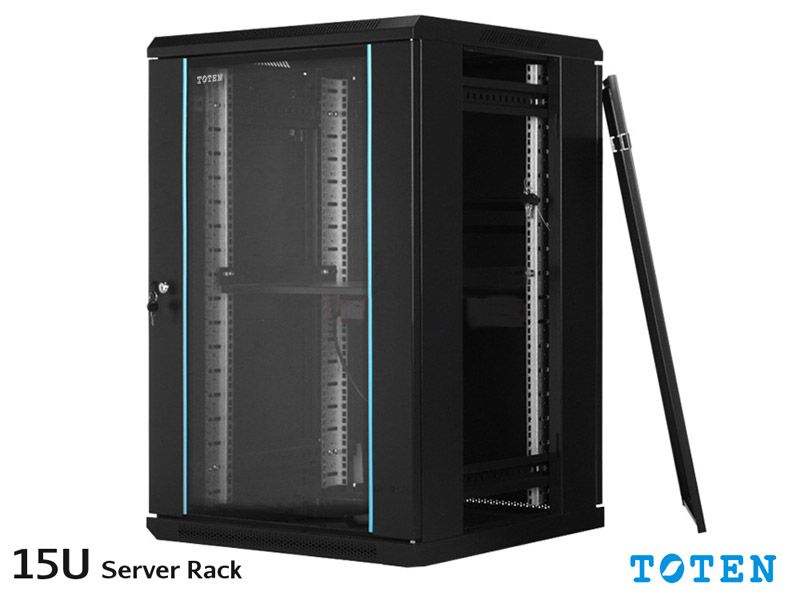

TOTEN 15U Server Rack (600x600)mm

Server Rack

Feature

  • Welded frame, reliable structure
  • Standing or wall mounting installation
  • Adjustable feet and heavy duty castors are optional
  • Easy mounting installation (patent)
  • 19” standard installation
  • Removable side panels, side locks optional
  • Cable entry on both of top cover and bottom panel
  • 120mm fan available
  • Turning angle of front door is over 180 degrees

Loading capacity

  • Static loading: 80KG

Degree of protection

  • IP20

Main material

  • SPCC cold rolled steel
  • Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm

Surface finish

  • Degreasing, pickling, phosphoric, powder coated




Specifications
