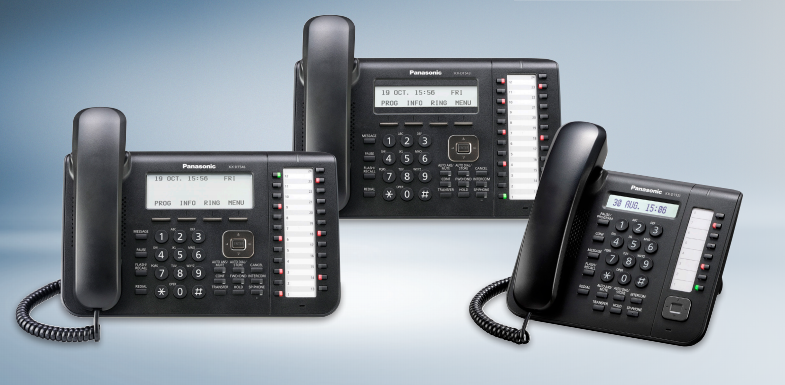

Panasonic KX-DT500 Series Digital Telephones

PABX System

The Panasonic KX-DT500 digital telephone series delivers superior desktop features through an ergonomic design that is stylish, comfortable and boast a user-friendly interface with a LCD display that makes accessing phonebooks and key features easy.

Each model, the KX-DT546, KX-DT543 and KX-DT521, delivers superior voice quality with a “full duplex” hands free speakerphone that enables more than one person to speak simultaneously without interruption or delay in voice delivery. The KX-DT546 and KX-DT543 models also come with an Electronic Hook Switch built-in which allows a range of wireless headsets to be used.

Industry-leading 2-year Warranty with US-based customer support
Making sure your business communication system stays up and running is a top priority. Provided with each model is a standard 2-year warranty, along with dedicated US-based customer support at our Virginia-based call center.


Features

Large, Backlit LCD Display

Full Duplex Speakerphone

2 Year Warranty

US Based Customer Support

Supports DSS Console (48 keys)*

Electronic Hook Switch (EHS) Support*

Specifications
DISPLAYKX-DT546KX-DT543KX-DT521
LCD TypeGraphicGraphicGraphic
LCD Size (Pixels WxH)242×109242×55160×18
LCD Lines/Characters6/243/241/16
LCD Contrast4 levels4 levels4 levels
LCD BacklightYesYesYes
INSTALL OPTIONS
Desk mount tiltYes (2 positions)Yes (2 positions)Yes (1 position)
Wall mountKX-A433 (Optional)KX-A433 (Optional)KX-A432 (Optional)
Dimension (W x D x H)High: 267 x 170 x 180mm
Low: 267 x 187 x 155mm
High: 267 x 170 x 180mm
Low: 267 x 187 x 155mm 205 x 160 x
170mm
AUDIO FEATURES
Handset / Headset volume6 levels6 levels6 levels
Hearing Aid compatibility (HAC)YesYesYes
Speaker PhoneFull DuplexFull DuplexFull Duplex
Speaker phone volume8 levels8 levels8 levels
Ringtones303030
Ringer Volume4 levels + Off4 levels + Off4 levels + Off
Headset port2.5mm audio jack2.5mm audio jack2.5mm audio jack
Electronic Hook Switch (EHS)3.5mm3.5mmNo
KEYS
Soft Keys44No
Programmable Keys24248
FEATURES
Auto RedialYesYesNo
Off Hook MonitorYesYesYes
Handset / Headset Mic MuteYesYesYes
Call Log (Outgoing/Incoming)YesYesYes
CONNECTIONS
DSS Console (KX-DT590)YesYesNo
External Expansion1 XDP/DXDP port1 XDP/DXDP port1 DXDP port
DSS CONSOLE KX-DT590
LCDNo
Keys48
ConnectionDLC Port
InstallationDesktop  (2 positions) Wall mount
Dimension (W x D x H)High: 137 x 161 x 135mm
Low: 137 x 183 x 114mm
