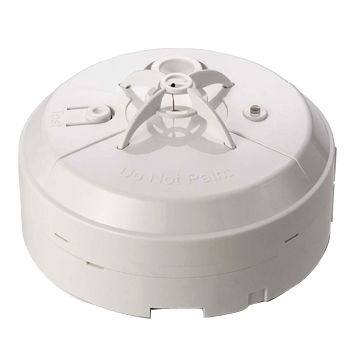

Horing Lih NQ9F Single Station Heat Detector
Single Station Heat Detector
Characteristics
- Detector has passed strict quality control and repetitive testing; hence its quality is durable and highly reliable.
- Simple test method: Press test button to hear the alarm sound and confirm the unit is in normal condition.
- Easy installation: Install directly to proper location without any wiring.
- It is equipped with 9VDC battery, and optional 100~240VAC power plug is available.
- Optional relay output: COM.NO.NC.
- Optional series connection wiring can co-activate up to 20 detectors.
Product PDF
Specifications
| Model | NQ9F |
| Power | 9V battery |
| Thermal Setting | 70°C |
| Indicator | | Standby:flash every 40 seconds | | Alarm :flash and beep continuously | | Battery abnormal:beeps and flash intermittently |
|
| Sound | 90dB/M and above |
| Ambient Temperature | -10°C~+55°C |
| Materials | Fire-proof plastic |
| Dimensions | 102mm(Dia.)x55mm(H) |
| Weight | About 150g |
| Color | White |
| Optional Function | | Type 1:9V battery | | Type 2:include signal transfer COM.N.O.N.C | | Type 3:Type 2 + Type 4 | | Type 4:build-in 110VAV or 220VAC |
|
