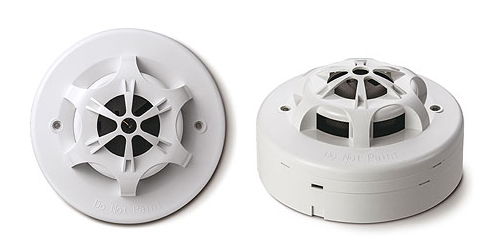

Horing Lih AH-0715 Combination Smoke and Heat Detector

Combination Smoke and Heat Detector

Fire Alarm (FA) System

Characteristics

  • Magnetic test feature makes maintenance easy and simple.
  • Twin-color LED display enables viewer to easily identify the current status of detector.
  • The standard detector is 2-wire or 3-wire. For 4-wire type just add one relay output module on 3-wire base. Simple and easy module placement enables wider application and flexible stock control.
  • Detector is made of high endurance, solid and colorfast Fire-proof plastic.
  • Non-loosening screws on base terminal for easy installation.
  • Detector has passed strict EMC test, which greatly eliminates false alarms caused by interference from nearby sources.

Product PDF
Specifications
ModelAH-0715-2AH-0715-3AH-0715-4
Alarm ContactN/AN/A

0.8A @30V DC

0.4A @125V AC

Voltage Range12 ~ 30V DC
Alarm Current @24V DC 470Ω40mA40mA45mA
Standby Current @24V DC 470Ω35 ~ 85A
Sensitivity SettingComply to EN54
Thermal Setting58°C
Ambient Temperature-10°C ~ +55°C
MaterialFire-proof plastic
Dimensions102mm(Dia.) x 54mm(H)
Weight130g130g145g
ColorWhite
