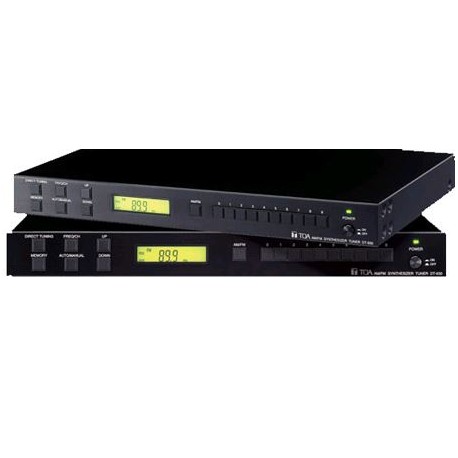

AM/FM Synthesizer Tuner DT-930

Power Source

120 V AC, 60 Hz (use of the supplied AC adapter)

Power Consumption

180 mA (when AC adapter is used)

Receiving Frequency

AM: 520 – 1710 kHz (10 kHz step)/ FM: 87.9 – 107.9 MHz (200 kHz step)

Antenna Input

AM: Loop antenna (balanced), external antenna (unbalanced) FM: 300Ω(balanced), 75Ω(unbalanced)

Audio Output

Stereo: –15 dB*, 10 kΩ, unbalanced, RCA jack/ Monaural: –15 dB*, 10 kΩ, unbalanced,M3 screw terminal, distance between barriers: 6.4 mm, RCA jack

Chanels of memory

40 channels in total for AM and FM broadcasts

Operating Temperature

0°C to 40°C

Finish

Panel: Aluminum (hair-line finish), black/ Case : Pre-coated steel plate, black

Dimensions

420 (w) x 53 (h) x 295 (d) mm (projections excluded)

Weight

2.8kg
